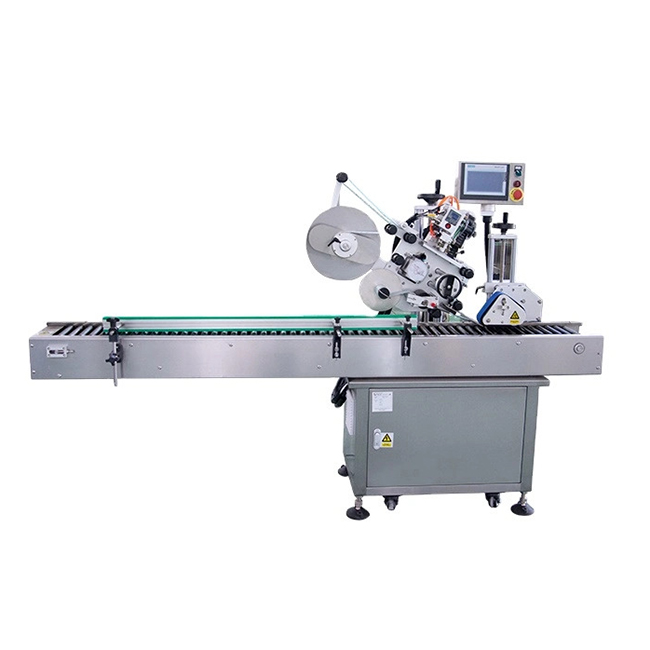

水平纏繞管貼標機
1. Apply to food, pharmaceutic, daily chemical, stationery, plastic industries etc.
2. Mainly used to automatically stick adhesive label on cylinder or small conical products which is unable to be carried vertically, such as tube, cylinder bottle, water injection, conical tube etc. High labeling precision, stable work ability, neat, no wrinkle, no bubble.
3. Suit for single or similar diameter products, orbit unadjustable and Can be matched with bottle feeder, ribbon printer, date printer, etc
技術參數
| 標籤尺寸 | （L）多10mm （W）110-100mm | 滾動內徑 | 76毫米 |
| 產品尺寸 | （D）10-16mm16-26mm 26-36mm （H）小於100mm | 滾動外徑直徑 | 350毫米 |
| 標籤精度 | + -1mm | 電源 | AC220V 50Hz 3kW |
| 貼標速度 | 40-150（件/分鐘） （與材料和標籤尺寸有關） | 機器尺寸 | （L）2000 *（W）1700 *（H）1500毫米 |
快速詳情
類型：貼標機
成色：全新
應用：飲料，化工，商品，食品，機械和五金，醫療
包裝類型：瓶子
包裝材料：紙，塑料
自動等級：自動
驅動類型：電氣和空氣
電壓：110V / 220V
功率：1.5KW
產地：中國上海（大陸）
品牌名稱：NPACK
尺寸（L * W * H）：2100 * 700 *千毫米
重量：300kg
認證：GMP
提供售後服務：工程師可在海外維修機械
產品名稱：臥式纏繞管貼標機
功能：管標籤
材質：S304不銹鋼
貼標速度：60-150瓶/分鐘
用法：橫向標籤
優勢：專業支持團隊
A horizontal wrap around tube labeling machine is a machine that is designed to wrap labels around cylindrical tubes with high efficiency and accuracy. This type of machine is ideal for labeling a wide range of products, including cosmetic tubes, toothpaste tubes, food containers, and other cylindrical products.
The machine is designed with a horizontal orientation, which enables it to handle large volumes of products in a compact and efficient manner. The labeling process starts with the product being fed into the machine, which then positions it in the correct position for labeling. The label is then applied to the product as it is rotating, ensuring a smooth and even application.
The machine is equipped with advanced features such as a touch screen control panel, which makes it easy to operate and adjust the settings. The control panel also provides real-time monitoring of the labeling process, enabling the operator to make any necessary adjustments to ensure consistent and accurate labeling.
The machine is also equipped with a high-speed labeling system, which can apply labels at speeds of up to 200 tubes per minute. This high speed capability ensures that the machine can keep up with the demands of a fast-paced production environment.
In addition, the machine is equipped with a built-in quality control system, which checks the accuracy of the labeling process and alerts the operator if any problems are detected. This ensures that the product is labeled with the correct information and meets all quality standards.
The horizontal wrap around tube labeling machine is also designed to be easy to maintain, with removable and replaceable components that can be quickly and easily replaced if needed. This helps to minimize downtime and reduce the cost of maintenance.
In conclusion, a horizontal wrap around tube labeling machine is a versatile and efficient labeling solution for a wide range of products. With its advanced features, high speed capabilities, and easy maintenance, it is an ideal choice for companies looking to improve the accuracy and efficiency of their labeling process.
